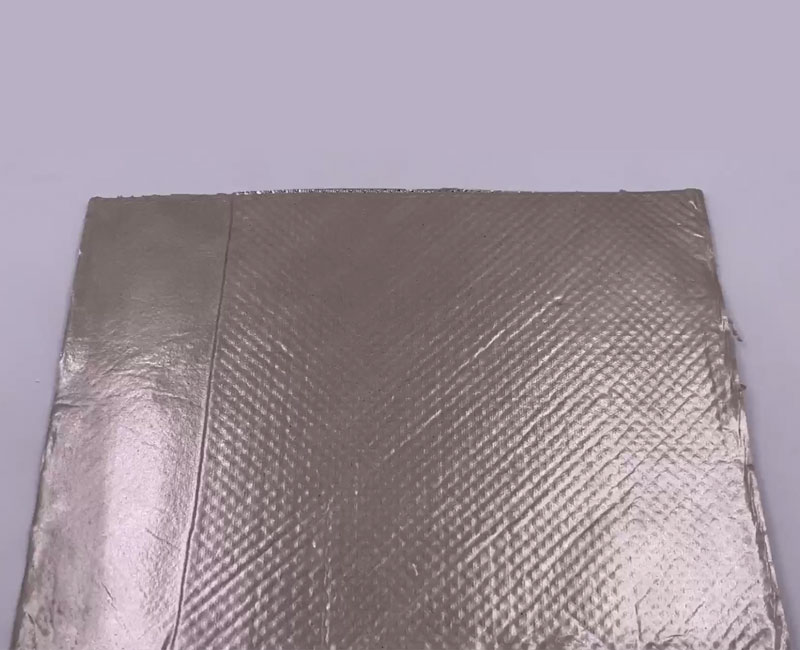

Mica Sheet Paper

Mica Sheet Paper is the continuous reeled paper made from high quality Muscovite, Phlogopite, Synthetic or Calcined Mica material, with mechanical pulping methods The mica paper is mainly used for all kind of mica sheet and mica tape. is the continuous reeled paper made from high quality Muscovite, Phlogopite, Synthetic or Calcined Mica material, with mechanical pulping

methods. The mica paper is mainly used for all kind of mica sheet and mica tape.

PROCESS:

Feed Raw Material - Pulping Mica Powder – Make Mica Paper – Reeling Mica Paper – Cutting and Packing

FEATURES:

1. Excellent insulating property.
2. Resist High Temperature.
3. Flexible, Fine Tensile Strength.
4. Good Penetration and air permeability.

SPECIFICATION:

Thickness: 45~350gsm or 0.028~0.22mm
Width: 960~1040mm
Length: Mainly 300~600m. Depend on the Thickness and Packing

MAIN MODEL:

606/607	Muscovite Mica Paper
P606	Phlogopite Mica Paper
S606	Synthetic Mica Paper
601	Calcined Mica Paper

TECHNICAL DATA:

Item	Weight g/㎡	Thickness mm	Penetration time  s(≤)	Dielectric strength  KV/mm(≥)	Tensile strength N/cm(≥)	Loss due to heating at 500℃ %(≤)	Conductivity of aqueous extract  μs/㎝(≤)	Temp. Resistant ℃(≥)
606	80	0.055	10	18	3	0.4	9	600
	160	0.1	30	18	3.6	0.4	9	600
	250	0.15	60	18	5.5	0.4	9	600
	350	0.22	105	18	7	0.4	9	600
607	60	0.04	10	18	3	0.4	9	600
	160	0.1	40	18	4	0.4	9	600
	250	0.15	70	18	5	0.4	9	600
	350	0.22	130	18	7	0.4	9	600
P606	90	0.06	16	17	3	0.4	10	800
	160	0.1	35	17	4	0.4	10	800
	250	0.15	70	17	5	0.4	10	800
	350	0.22	130	17	7	0.4	10	800
S606	105	0.065	10	19	3	0.25	6	1000
	120	0.07	14	19	3	0.25	6	1000
	160	0.1	20	19	3.5	0.25	6	1000
601	90	0.06	16	20	3	0.4	10	1000
	160	0.1	35	20	4	0.4	10	1000
	250	0.15	70	20	5	0.4	10	1000
	350	0.22	130	20	7	0.4	10	1000
