                    Flange Insulation Gasket

                    Flange Insulation Gasket Sets are usd to solve the sealing and insulating problems of flanges, and to control losses due to corrosion and leakage of pipelines. They are widely used to seal flanges and control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.

                    Model:KXT 1001

                    Send Inquiry

                    Product Description

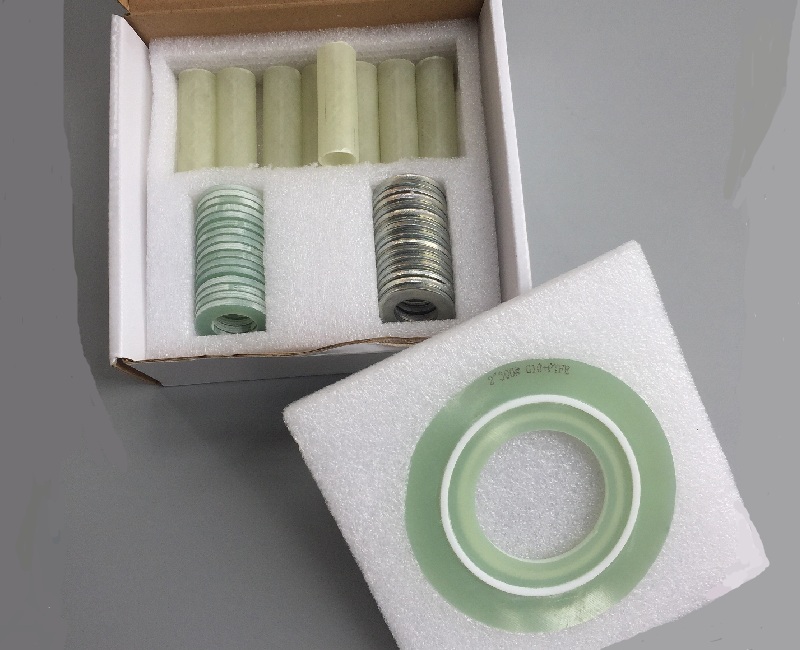

                    Flange Insulation Gasket Sets

                    Flange Insulation Gasket Sets
                    Product name: Flange Insulation Gasket Sets
                    Item: KXT-110
                    Details:

                    Flange Insulation Gsket Sets are usd to solve the sealing and insulating problems of flanges, and to control losses due to corrosion and leakage of pipelines. They are widely used to seal flanges and control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.


                    Application of Flange Insulating Gasket Sets

                    To limit the extent and cost of cathodic protection current to only those pipes that need to be protected from the main cathodic protection system
                    To electrically "split up" long pipelines into distinctive cathodic protection systems
                    To isolate a pipeline to ensure that cathodic protection or stray electricity currents do not cause increased corrosion, or cause a hazard
                    To isolate piping systems where dissimilar metals are present
                    To eliminate static loading charge transfer in discharge or loading operations at oil storage terminals

                    Insulation Gasket Type:
                    Type E (Full Face Gasket)
                    This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.

                    Type F (Ring Type Gasket)
                    This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out" the flanges.

                    Type D (RTJ Gaskets)
                    To fit RTJ flanges. They can be produced according to ASME and API flange standard.


                    Sealing Gasket Physical Properties

                    Property
                    Plain
                    Phenolic
                    Neo-faced
                    Phenolic
                    Silicone
                    Glass
                    G-7*
                    Epoxy
                    Glass
                    G-10
                    Epoxy
                    Glass
                    G-11
                    Dielectric strengths,
                    Volts/mil
                    500
                    500
                    350-400
                    550
                    550
                    Compressive strength,
                    psi
                    25,000
                    25,000
                    40,000
                    50,000
                    50,000+
                    Water absorption, %
                    1.6
                    1.6
                    0.07
                    0.10
                    0.10
                    Insulating Resistance,
                    Meg Ohms
                    40,000
                    40,000
                    2,500
                    200,000
                    200,000
                    Flexural strength, psi
                    22,500
                    22,500
                    27,000
                    45,000
                    43,000
                    Operating temp, oF
                    -65 to +220
                    -65 to +175
                    -292 to +450
                    -292 to +280
                    -292 to +349
                    Operating temp, oC
                    -54 to +104
                    -54 to +79
                    -180 to +232
                    -180 to +138
                    -180 to +176



                    * = G-7 material should not be used with hydrocarbons, not even trace amounts.


                    Seal Element Temperature Limits

                    Nitrile
                    Viton
                    Teflon
                    Neoprene
                    EPDM
                    -65 to +250oF
                    -20 to +350oF
                    -292 to +450oF
                    -40 to +248oF
                    -65 to +248oF
                    -54 to +121oC
                    -29 to +177oC
                    -180 to +232oC
                    -40 to +120oC
                    -54 to +120oC

                    Consider both retainer and seal element temperature limits togetherfor KXT-110 and KXT-120 Sealing Gaskets.


                    Flange Insulation Gasket Set is becoming more and more important in the industry of oil&gas, petroleum, chemical, refinery.
