Corrugated Gasket

The Corrugated Gasket have been proven to be both reliable and cost effective for the application on flanges and heads where boat loading

is sufficient.

Corrugated metal is covered with graphite, ceramic or PTFE layer. An additional finishing layer is applied depending on the requirements of the

medium to be sealed. The gaskets with soft layer on both sides are used in low pressure applications in large diameter flue gas ducts at high

temperatures

Advantages
> Outstanding mechanical strength and thermal conductivity.
> Capable of withstanding high temperatures.
> There are almost no limitation regarding size
> Solid construction provides stability even for large diameters and ensures trouble-free handing and installation

Shape and construction

The metal gaskets are produced in several types to meet the most demanding applications, shapes round, oval, rectangular, etc.

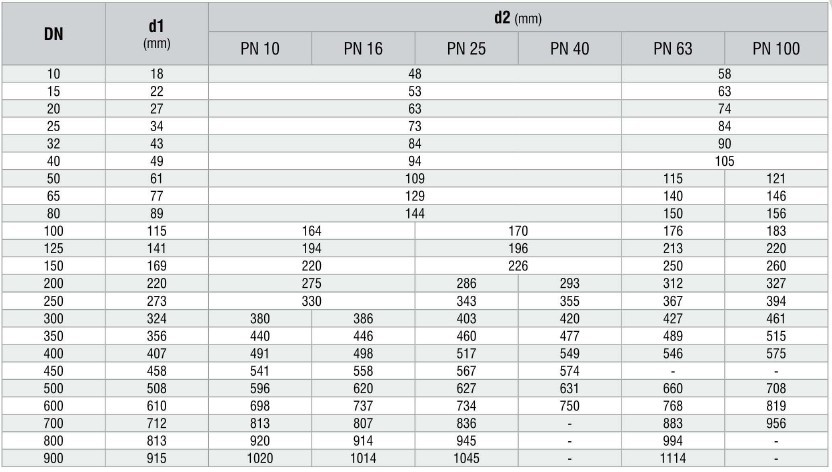

Dimensions Corrugated Metal Gaskets to Suit DIN EN 1514-4
