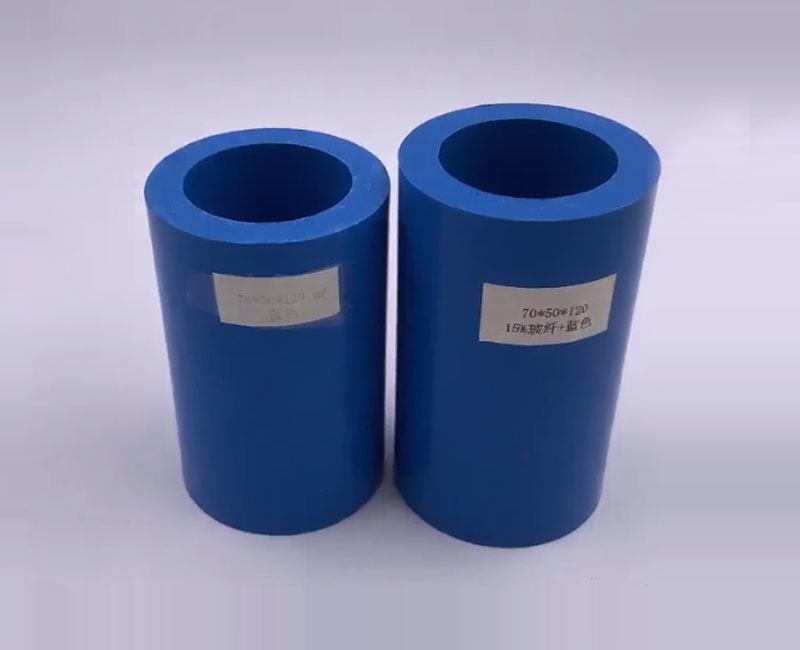

15% Carbon Fiber Filled PTFE Tube

We are professional supplier and manufacturer of 15% carbon fiber filled PTFE tube, any need pls contract us kaxite with 15% carbon fiber filled PTFE tube
15% Carbon Fiber Filled PTFE Tube
Style KXT CU980-15 15% carbon fiber filled PTFE Tube
15% carbon fiber filled PTFE tube has good chemical resistance to corrosive environments, has better creep & wear resistance compared to pure PTFE materials. These properties are improved with the addition of a carbon fiber filler. This filler improves dimensional stability, to raise the
heat deflection temperature, improves creep resistance & the dynamic bearing performance. PTFE Carbon Filled exhibits good initial wear and rubbing or sliding contact characteristics in both dry or water applications. It's frequently used in piston rings to reduce cylinder wall wear by
entrapping abrasive outside particles in their relatively soft surface

Advantages:

• Carbn fiber enhance the creep and wear resistance to standard PTFE
• Extremely good chemical resistance against virtually all media
• Moderately electrical conductivity
• Good sliding properties
• Creep resistance
• Anti-static

Application:

• Pump and instrument construction
• Food and medical technology
• Chemical engineering parts
• Electrical industry
• Pump housings
• Shaft bearings
• Valve seats
• Shaft seals
• Gaskets., etc

Data sheet

Specific Gravity	2.1-2.2/cm3
Tensile Strength	18-25 mpa
Elongation	200-300%
Shore D Hardness	60-68
Temperature Range	-200 oC - 260 oC
Material	15% Carbon fiber + PTFE
